Stapleton Guitars

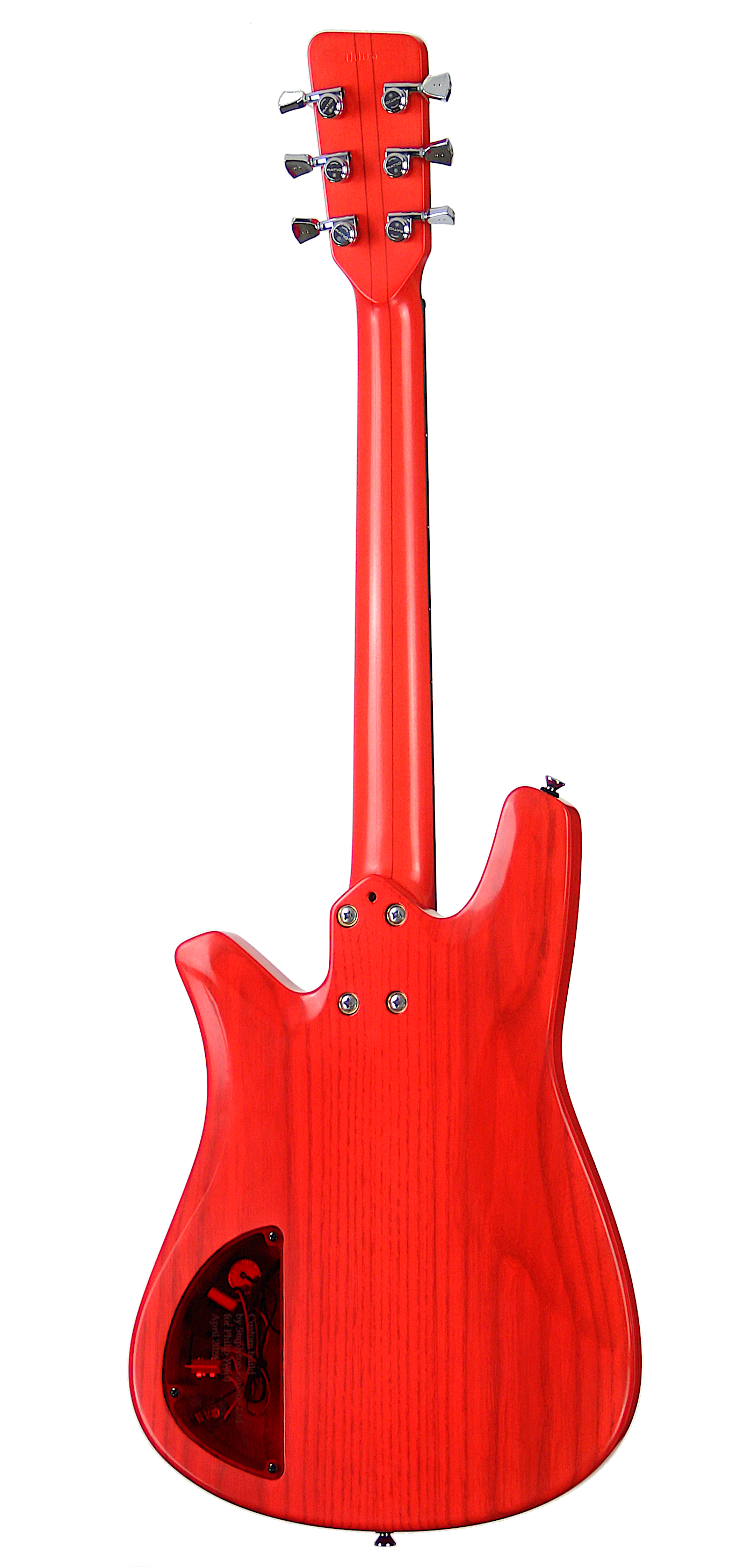

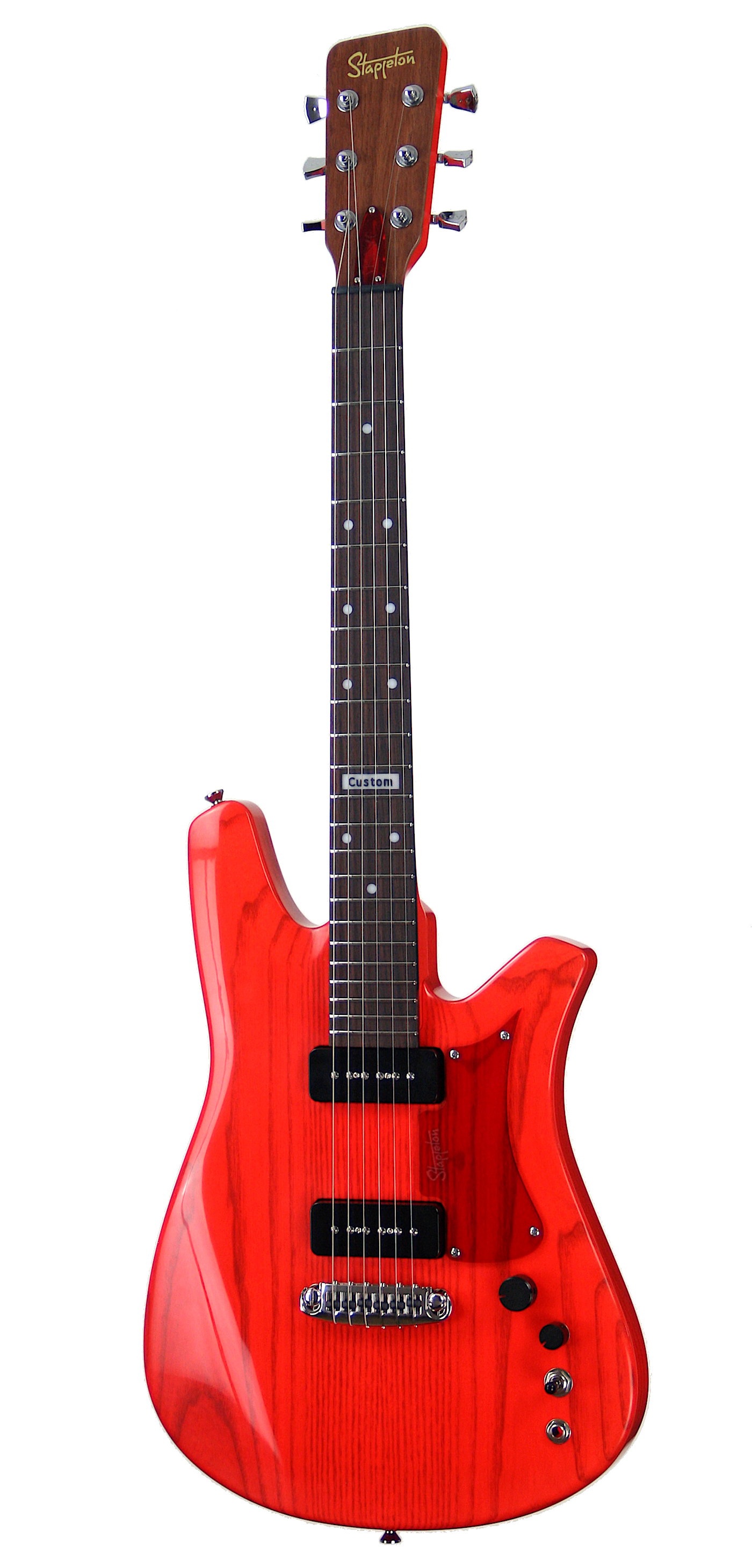

SKYE™ Transparent Red. White Ash body, Maple neck, Indian rosewood fingerboard.
SKYE™ Transparent Red. White Ash body, Maple neck, Indian rosewood fingerboard.
Couldn't load pickup availability
White Ash solid wood two piece body, Maple neck and Indian Rosewood fingerboard. The guitar loaded with tapped P-90 Soapbar pickups.
The guitar has 25" scale length.
High quality components such as Graphtech Vintage style locking machine heads, Black Graphtech TUSQ XL nut, Graphtech ResoMax NW2 Adjustable Wraparound Bridge w/ String Saver Saddles and Stainless steel Jescar frets.
Video
Share
SPECIFICATION
NECK
NECK WOOD: Maple
NECK BINDING: None
NECK REINFORCEMENT: Jarrah/Flame maple
FINGERBOARD WOOD: Indian Rosewood
FINGERBOARD RADIUS: 12 in (304.8mm)
FINGERBOARD INLAYS: White dots with "Custom" inlay at 12-th fret
SIDE DOTS: White dots
SCALE LENGTH: 25 in (635 mm)
NUT MATERIAL: Black Graphtech TUSQ XL
NUT WIDTH: 45mm
NUMBER OF FRETS:23
FRETS MATERIAL: Jescar Stainless Steel .095″ X .047 (2.41 X 1.19 mm)
TUNING MACHINES: Graphtech Vintage style locking
TRUSS ROD: Double Action
NECK JOINT: Bolt-On
NECK FINICH: Red Gloss Waterbased Clear Polyurethane
HEADSTOCK SHAPE: Original SKYE™
HEADSTOCK VENEER: Jarrah
HEADSTOCK LOGO: Gold
HEADSTOCK INLAY: None
HEADSTOCK PURFING: None
BODY
BODY TOP WOOD: None
BODY WOOD: American White Ash
BODY COLOUR: Transparent red
BODY WIDTH: 335mm
BODY LENGTH: 460mm
BODY DEPTH: 42mm
BODY BINDING: None
BODY FINISH: Gloss Waterbased Clear Polyurethane
BODY STRIPE: None
PICKGUARD MATERIAL: 3mm transparent red
BRIDGE STRING SPACING: 54mm
ELECTRONICS
NECK PICKUP: Tapped P-90 Soapbar pickup Alnico 5
BRIDGE PICKUP: Tapped P-90 Soapbar pickup Alnico 5
VOLUME CONTROL: One potentiometer
TONE CONTROLS: One Push/Pull potentiometer
JACK: Mono
SWITCH: 3 Position Toggle Switch
HARDWARE AND MISC
BRIDGE: Graphtech ResoMax NW2 Adjustable Wraparound Bridge w/ String Saver Saddles
KNOBS: Black Aluminium
STRAP BUTTONS: Nickel Plated
STRINGS: Ernie Ball 8/38
BAG OR CASE: None
GUITAR WEIGHT: 4.1kg
